If you want create the ultimate home theatre experience, where every sound is crisp and clear, you need to know the secret of the science behind acoustic panels and sound absorption. By strategically placing the sound panels in your home theatre, you can eliminate unwanted voice intelligibility issues like echo or reverberations, resulting in a more fascinating and joyful audio experience. In this article, we will delve into the technical aspects of acoustic panels and explore how they work and enhance the sound quality in your home theatre.

Understanding Acoustic Wall Panels

Understanding acoustic wall panels is crucial for creating optimal sound quality in your home theater. These panels are designed to absorb sound waves and reduce echoes and reverberations in the room. By strategically placing them on the walls, you can achieve a balanced and immersive audio experience.

What are Acoustic Wall Panels

You’ll find that acoustic wall panels are designed to absorb sound and reduce the reverb time in your home theater. These panels are not just simple decorative elements, but rather to be able to absorb down into lower frequencies (below 200-300Hz) they need to be carefully engineered to enhance the acoustics of your space. Here’s what you need to know about acoustic wall panels:

  • Acoustic absorption panels are made from materials that are specifically chosen for their sound absorption properties and are designed and measured in free air, not up against walls.
  • They come in various sizes, thicknesses and shapes, allowing you to customize their placement in your room.
  • The science behind acoustic panels lies in their ability to trap and convert sound energy into heat energy. To achieve this, there position relative to boundaries is critical to their performance.
  • Acoustic diffuser panels scatter the sound based on the direction of the pattern. Depth will dictate the frequency that the panel will diffuse down to. A 50mm deep panel will diffuse down to around 500Hz. A 100mm deep panel to 300Hz and a 150mm deep panel to 200Hz – roughly speaking. The human voice extends well down below 200Hz as a reference.
  • The panels work by reducing sound reflections and preventing sound waves from bouncing around the room. The two main sounds we want to deal with are first reflections and slap echo, it is more involved than that.
  • By strategically placing these panels on your walls, you can create a more balanced and immersive sound experience in your home theater.

Understanding the science behind acoustic panels is crucial for achieving optimal sound quality in your home theater.

How do Acoustic  Panels Work

To create a more immersive audio experience in your home theater, acoustic absorber panels absorb sound energy, reducing reflections and preventing sound waves from bouncing around the room.  The science behind acoustic panels lies in their ability to absorb sound waves through the use of specialized materials, such as foam, polyester & glass/rockwool fibres. When sound waves hit the panels, the foam material converts the sound energy into heat, effectively reducing the intensity of the sound. Without some form of enhancement, all of these products can only absorb down to approx. 200Hz. This absorption process prevents the sound waves from reflecting off the walls and interfering with the original sound, resulting in a clearer and more balanced audio experience. By strategically placing these acoustic panels in your home theater, you can create a controlled and optimized sound environment that enhances your overall viewing and listening pleasure.

a black and white photo of a wall made of corrugated

Sound Absorption Mechanisms

Understanding how sound absorption mechanisms work in acoustic panels can greatly improve the sound quality in your home theatre. Acoustic panels are designed to absorb sound energy and reduce unwanted echoes and reverberations. Here are five key mechanisms behind sound absorption in acoustic panels:

  • Porous Absorption: Acoustic panels with porous materials, such as fiberglass or foam, absorb sound by converting sound energy into heat energy through friction and require velocity to work. Generally the product needs to be one quarter wavelength away from a boundary to work effectively. For example – a 345Hz soundwave is 1m long, so an absorber would need to be 250mm from the wall for maximum efficiency. You can start to see the problem. 100Hz would require a placement of 863mm from a wall. At 100mm think an absorber is not performing well at 200Hz, but enough to make a difference to your perception of sound. The goal is not to kill all sound, but to change the way that your brain interprets that sound.
  • Resonance Absorption: Panels with resonant cavities are tuned to specific frequencies to absorb sound energy through resonance effects, effectively reducing sound reflections. These work by changing areas of high pressure into velocity. Up against boundaries are areas of high pressure (high sound level) and so these are the correct products to be using. That said, as single panel is never enough to tune a room. Put simply, you must keep adding panels until the problem you are addressing is resolved. Until that is achieved, you have essentially wasted your money. Most good manufacturers will have recommendations based on room volume, of the number of panels required to work as designed.
  • Panel Thickness: The thicker the panel, the greater the sound absorption. This is because more sound energy is absorbed as it travels through the panel’s material.
  • Panel Density: Higher density panels can absorb more low-frequency sound energy, while lower density panels are effective at absorbing high-frequency sound.
  • Panel Placement: Proper placement of acoustic panels in your home theatre can enhance sound absorption by strategically reducing sound reflections.

Sound Diffusion Mechanisms

Understanding how diffusion mechanisms work in acoustic panels can greatly improve the sound quality in your home theatre. Diffusion panels are designed to scatter sound energy in a direction of the panel deigned and create a natural sounding room rolloff and reverberation times. Using diffusion is critical for all projects where a high quality result is desired. While absorption is an option for very small rooms or stereo systems, for larger cinema spaces it is not appropriate to use absorption only. Here are five key mechanisms behind sound absorption in acoustic panels:

  • Curved 2D Diffusers: These panels scatter in one plane and are perfect for first reflections, as they do two things:
    • They keep the energy in the horizontal plane of the speakers, which helps to maintain energy from the front speakers
    • They maintain frequency phase relative the original signal. This is critical for how your brain interprets the sound.
  • Schroeder (slatted or randomising) diffusers: Many of the early diffusers were slatted in both one or two directions. These panels are largely to be avoided, as there other common name is ‘Phase grates’. They work be creating different sound pressures in front of the panel, but in so doing alter phase. Generally speaking the sound is not considered to be similar to the original sound until you are approx. 1.5m from the panel. These should not be used in first reflection positions or close to seats. An example of this type of panel is a ‘Skyline’ diffuser that is often used incorrectly by some companies.
  • 3D Diffusers: These diffusers are best used around the seating positions, where they can spread the sound out to create a more unified soundstage. Once again, Schroeder diffusers should be used with caution.
  • Absorber Diffusers: many absorbers have diffuser properties in the higher frequency. This is product specific, so please read the manufacturer specifications before using them. Diffusion can be designed to be either 2D or 3D based on the perforation pattern.
  • Artnovion: This is a good example of a company that is correctly engineering panels, with detailed acoustic reports.
  • Panel Placement: Proper placement of acoustic panels in your home theatre can enhance sound absorption by strategically reducing sound reflections.

Benefits of Acoustic Wall Panels

You’ll notice a significant improvement in sound quality with acoustic wall panels. These panels are designed to enhance the acoustic environment of your space, providing effective sound absorption and reducing unwanted noise. Here are some benefits of using acoustic wall panels:

  • Improved sound clarity: The panels control the sound waves, reducing echo and reverberation, resulting in clearer and more intelligible audio.
  • Enhanced audio experience: With reduced background noise and better sound quality, you can fully immerse yourself in your favorite movies or music.
  • Noise reduction: Acoustic panels help minimize external noise from entering your space, creating a quieter and more peaceful environment.
  • Customizable design: Available in various sizes, shapes, and colors, these panels can be tailored to match your aesthetic preferences while improving sound performance.
  • Easy installation: Acoustic wall panels are designed to be easily mounted on walls, making them a convenient and effective solution for improving sound in any room.

Incorporating acoustic wall panels into your space can significantly improve the sound quality and create a more enjoyable listening experience.

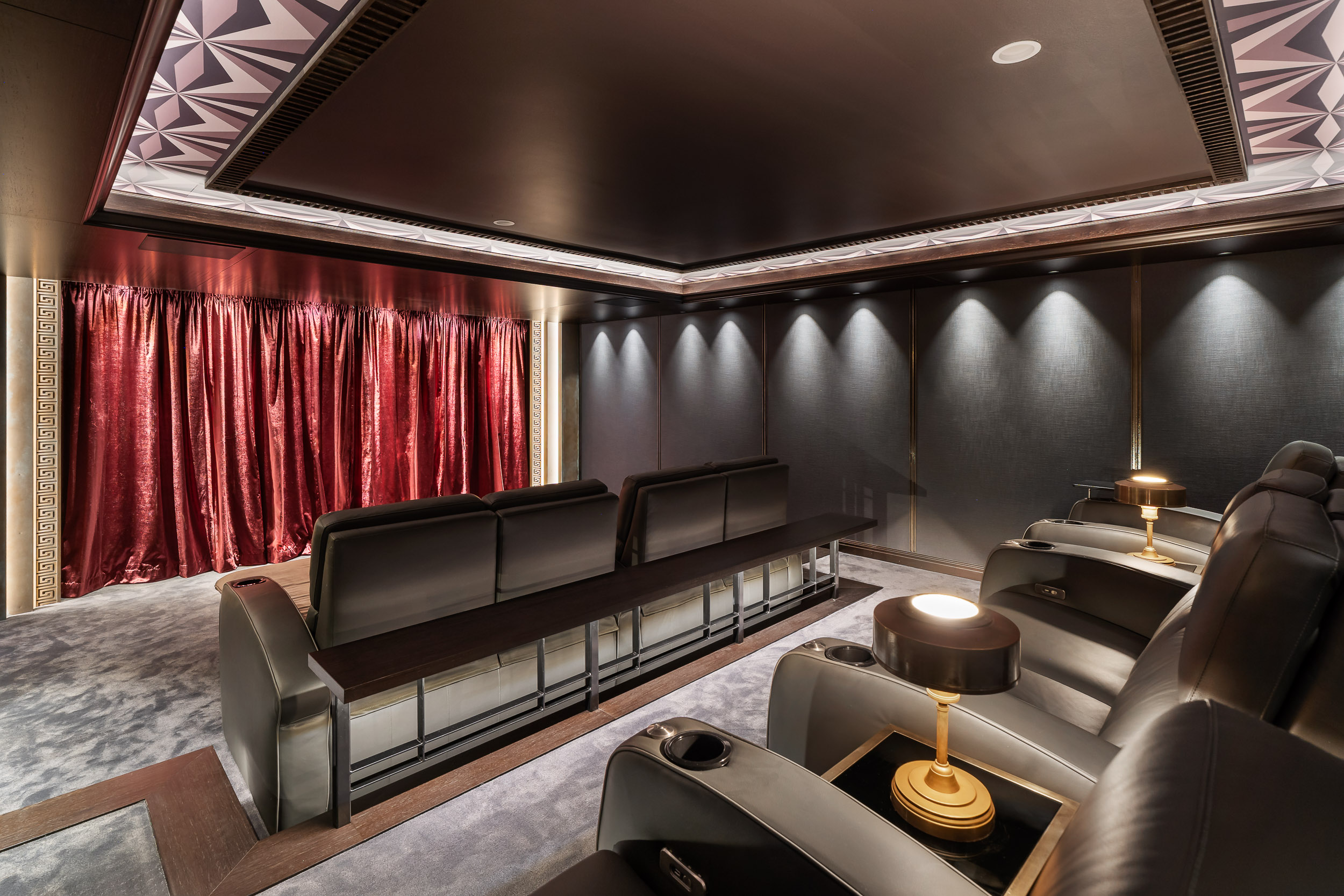

The Placement and Configuration of Acoustic Wall Panels

To achieve the best sound quality in your home theater, it is crucial to consider the placement and configuration of acoustic wall panels. The strategic positioning of these panels can significantly impact the absorption and diffusion of sound waves, minimizing unwanted reflections and enhancing overall audio clarity. By carefully assessing optimal panel placement, panel spacing, and reflection points, as well as considering corner placement considerations, you can create an immersive and acoustically optimized environment for an exceptional audio experience.

Optimal Panel Placement

For the best sound absorption in your home theatre, it’s important to consider the optimal placement of acoustic panels. By strategically positioning these panels, you can enhance the audio experience and create a more immersive environment. Here are some key factors to consider when determining the optimal panel placement:

  • Reflection points: Identify the areas in your room where sound waves bounce off walls and surfaces. Use a mirror on the wall and when you can see a speaker from your seat, that is a first reflection point. Place acoustic panels at these reflection points to minimize sound reflections and improve clarity. You only need to decide what panels to use – absorption or diffusion. Experiment to hear the differences – they are significant.
  • Bass traps: Place bass traps in the corners of the room to absorb low-frequency sound waves. This helps to reduce bass buildup and create a more balanced sound.
  • Early reflection points: Install panels on walls, ceilings, and floors at the early reflection points. These are the spots where sound waves first hit after bouncing off the speakers. Don’t forget the rear wall, especially if you are sitting close to it. By altering these reflections, you can improve sound imaging and localization.
  • Diffusion: Consider adding diffusive panels to break up sound reflections and create a more natural, spacious soundstage. These panels scatter sound waves, preventing them from bouncing directly back to the listener.
  • Room size and shape: Take into account the size and shape of your room when determining the optimal panel placement. Different room dimensions and layouts may require specific panel arrangements to achieve the best sound absorption.

Panel Spacing and Reflection Points

Now let’s discuss panel spacing and reflection points, crucial factors in optimizing the performance of acoustic panels in your home theatre. Proper panel spacing ensures even sound absorption throughout the room, preventing any unwanted echoes or reverberations. To achieve this, it is recommended to place panels at regular intervals on the walls, ceiling, and even the floor if necessary.

Reflection points are specific areas where sound waves bounce off surfaces and create echoes. By strategically placing acoustic panels at these points, you can effectively reduce unwanted reflections and improve sound clarity. To identify reflection points, you can use a mirror or another reflective surface and observe where sound waves bounce off.

We have discussed many things to try above. The one thing we haven’t discussed is Slap Echo. Clap your hands. That high pitch ringing that you hear is slap echo. Now place an acoustic panel on the wall inline with where you are standing. Does the high pitch ring disappear? This is happening in all directions. Slap echo is sound bouncing between flat parallel surfaces. To stop it, you only need to treat one of those surfaces, not both. Slap echo is critical to deal with in line with you head position, but slap echo around the room will still be audible at your seat.

As a generalisation you should be using the following as a rough guide for treatment, assuming your room has a quality (thick) carpet:

  • 20% of the room wall surface should be absorption
  • 20% should be diffusion

Even if you randomly place that approx. proportion of good quality product around the room, you will be staggered as to the improvement to the rooms signature sound. Now you just need to get the panels into the correct position to deal with the interaction of the speaker with the room and to your ear. It’s fun to experiment and the only true way to learn. Keep in mind that acoustics is complicated and takes years to master. Wavetrain Cinemas has been lecturing in Cinema design & acoustics for 20 years. It’s no accident that we are the most awarded company in the Asia/Pacific region.

Corner Placement Considerations

When placing panels in the corners of your room, it’s important to consider the impact they will have on the overall sound quality. Corner placement of acoustic panels can significantly enhance the sound absorption capabilities of your home theater. Here are some key considerations to keep in mind:

  • Maximize coverage: Placing panels in the corners allows for maximum coverage of the room, effectively reducing the reflection points where sound waves bounce off the walls.
  • Bass control: Corners are known to accumulate low-frequency energy. By installing appropriate panels in the corners, you can effectively control bass buildup and achieve a more balanced sound.
  • Diffusion: Corner placement can also provide diffusion, breaking up sound waves and reducing flutter echoes that can negatively impact the listening experience.
  • Optimal positioning: Experiment with different angles and heights to find the optimal placement for your panels. Test the sound quality at various positions to achieve desired sound absorption.
  • Combination with other panels: Corner placement should be combined with panels on other walls to achieve balanced sound absorption throughout the room.

The Science behind Wooden Acoustic Panels

Wooden acoustic panels are an effective solution for soundproofing and enhancing the acoustic properties of a room. The science behind wooden acoustic panels lies in their ability to absorb and diffuse sound waves. The wooden material, with its dense structure, allows for the effective absorption of sound, reducing echo and reverberation in the space.

Home Cinema Speakers

Fundamentals of Sound and Wood

You’ll notice that wood plays a crucial role in the fundamentals of sound and its absorption in home theatres. Wood has unique properties that make it an excellent material for sound absorption. Here’s why:

  • Porosity: Wood is naturally porous, allowing sound waves to enter and get absorbed within its structure.
  • Resonance: Wood has the ability to resonate at certain frequencies, enhancing the sound quality and creating a more immersive environment.
  • Diffusion: The uneven surface of wood helps to scatter sound waves, preventing sound from bouncing back and causing unwanted echoes.
  • Aesthetics: Wood is visually appealing, making it a popular choice for acoustic panels in home theatres.

Understanding the fundamentals of sound and the science behind wood’s sound absorption properties is essential for creating the perfect acoustic environment in your home theatre.

Advantages of Wooden Acoustic Panels

To enhance your audio experience, wooden acoustic panels offer numerous advantages such as improved sound quality, aesthetic appeal, and reduced echoes. When it comes to sound absorption, these panels are highly effective due to their unique construction and materials. The wood used in these panels acts as a natural sound absorber, reducing sound reflections and echoes in a room. This helps to improve the acoustics of the space, allowing for a more immersive and enjoyable listening experience. Additionally, wooden acoustic panels are aesthetically pleasing, adding a touch of elegance to any room. They can be customized to match the decor and style of your home theater, enhancing both the sound quality and visual appeal of the space. Overall, investing in wooden acoustic panels is a smart choice for anyone looking to create a high-quality and immersive audio environment.
